Metal bellows and
flexible metal hoses Aerospace

Contact
Metal Bellows for Aerospace Image Text

Metal Bellows Assemblies

Corrugated bellows combine higher pressure resistance with low spring rates and optimised expansion capacity. Small size steps for ideal interfacing from DN 2 to DN 100 and beyond, as well as from special materials (e.g. IN718 or Ti 15-3-3-3-3-3).

  • multi-plied designs for high flexibility with maximum pressure resistance
  • alternative designs/combinations (e.g. formed, edge welded, with / without braiding, coaxial)
  • diaphragm bellows with very high elasticity and low spring rates
Flexible Metal Hoses for Aerospace Image Text

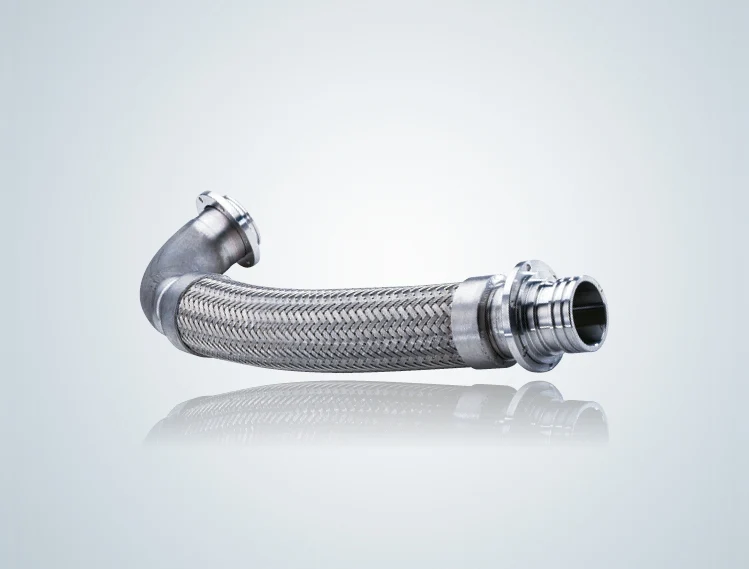

Metal Flex Hose Assemblies

Characteristics:

  • small size steps for an ideal connection from DN 6 to DN 300
  • various types of hoses developed for special applications with individual end-fittings according to customer specifications
  • highly flexible version available
  • various hose profiles offer a specific performance according to customer specifications
  • inconel versions for high-temperature applications available
