Product overview metal bellows from Witzenmann

Metal bellows

Contact

Here you will find an overview of our standard corrugated bellows and diaphragm bellows range. Do you need a special design? Please get in touch with us.

Product overview corrugated bellows stainless steel Witzenmann

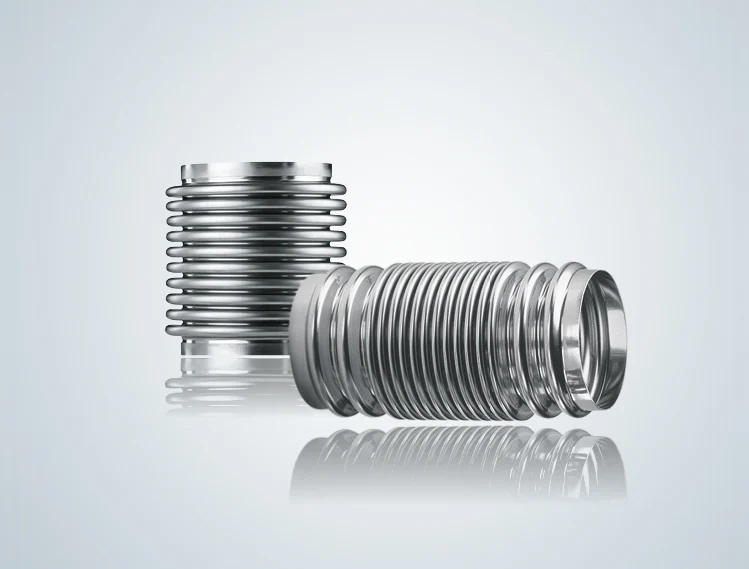

HYDRA® Corrugated Bellows

Corrugated bellows are pressure-tight as well as highly flexible.

Typical fields of application are machinery and plant engineering, the valve gear industry, measurement and control technology, vacuum technology, solar applications and the semiconductor industry.

Learn more about Corrugated Bellows
Product overview diaphragm bellows stainless steel Witzenmann

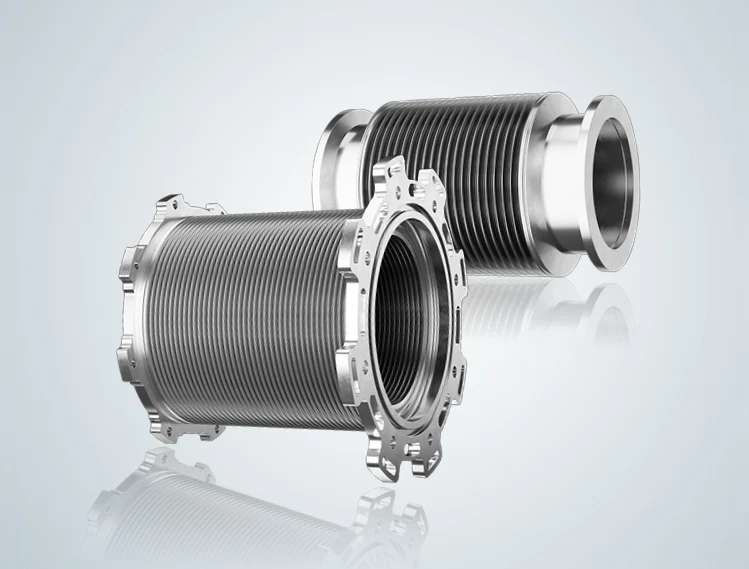

HYDRA® Edge Welded Bellows

Edge welded bellows offer the greatest flexibility with low space requirements.

Typical applications are vacuum valves, vacuum ducts, media storage, volume compensation elements, floating ring seals as well as measuring and control units.

Learn more about Edge Welded Bellows
Flexperte Design Software for pipe supports Witzenmann

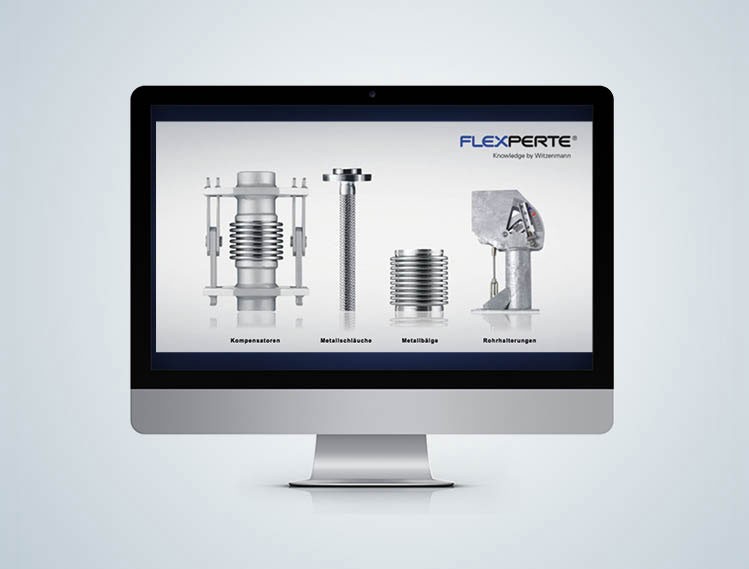

FLEXPERTE - The Design Software

Specially designed for designers, "FLEXPERTE" is a PC software application for dimensioning and presenting expansion joints, metal bellows, flexible metal hoses and pipe supports. The menu-based application aids in the calculation and design of these products.

  • intuitive operation
  • tailor-made design even of complex load chains
  • Rohr2, CAESAR II, PDMS and PDS interfaces
Directly to product configuration

Next steps

Downloads

Metal Bellows Manual

Product Overview HYDRA® Metal Bellows

EN ISO 14001:2016

Certificate Škoda

Certificate Nuclear Energy

Configure product

Configure products for your individual needs quickly and easily with our FLEXPERTE tool.

Details:

  • Designing of Standard Products
  • Preparation of Technical Data Sheets
  • Preparation of Enquiries

Download: FLEXPERTE customer version

FLEXPERTE: The design programme for the entire product range of the Witzenmann Group with a function-specific classification

  • Flexible metal hoses
  • Expansion joints
  • Metal bellows
  • Bearings, hangers, supports
Apart from the calculation formulas, drawing data as well as entire 3D CAD drawings are stored. Provided with PDS and PDMS interfaces, the program can be used multifacetedly and universally.

Other questions

There is nothing like direct contact. We will gladly take the time for a personal discussion and answer your questions individually.
Please send us your inquiry using our contact form and we will then contact you immediately.
